VMware&VNC console需要能够显示图形

admin

On the vSphere Client you select the host then configuration > firewall properties > gdbserver > select the checkbox > click ok. (this is really only for testing purposes) For production you would want to limit the ports to 5900-6000.
* y, z7 b0 ?. A- \
" q5 w+ l4 ~3 P5 W1 V' F& mNova.conf (My controller and compute node live on the same server, and this is configuration is for testing only)
[default]
7 L, v0 q  Q1 z  `. ^2 u" n0 x% Cvncserver_proxyclient_address = IP of your Controller
- i5 E  F6 B  ]' ]7 d3 qvncserver_listen = 0.0.0.0
vncserver_enabled = True
. e) b% g1 F' z: Cnovncproxy_host = 0.0.0.0
novncproxy_port = 6080
% c6 P) @" I5 z$ vnovncproxy_base_url = http://mycontroller:6080/vnc_auto.html

Make sure you have the nova-novncproxy and nova-consoleauth packages installed. If you have your firewall enabled on your controller I would disable it.

5 @3 F( D3 U0 Q% xI am having problems making SPICE protocol work with vSphere at the moment.

admin

& \% E+ A- k  ~5 }

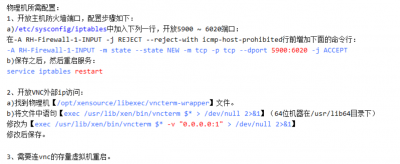

登录/注册后可看大图

& z$ R8 P6 _& W0 f

admin

在各个计算机节点和控制节点写入esxi对应的ip和主机名称。vnc就可访问。
