实验需求
' y- G% O  u9 X: K6 Z给PC5配置IP地址为100.6.1.2；PC5的网关为的r1路由器G0/0端口的IP地址100.6.1.1
' ]" P# `; Y% Y6 |给PC6配置IP地址为100.6.5.2；PC6的网关为的r4路由器G0/0端口的IP地址100.6.5.1

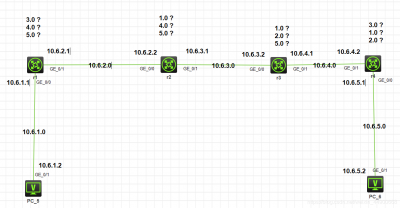

如扑拓图所示，给路由器的各个端口配置相对应的IP地址
实验解法
' k0 C9 o. l) I* v9 b$ v路由器配置IP地址
7 d5 ]! u- A4 h# U+ |: sr1
- t& n  ]& D) v <H3C>system-view
[H3C]sys r1
[r1]interface GigabitEthernet 0/0
[r1-GigabitEthernet0/0]ip address 100.6.1.1 24
! [+ n, M4 \3 W1 n9 {[r1-GigabitEthernet0/0]exit
[r1]interface GigabitEthernet 0/1
* Y' b# x0 j! ^2 ~/ \; m[r1-GigabitEthernet0/1]ip address 100.6.2.1 24
. D2 _$ p  ^, {0 e8 n0 D; O<r1>system-view
1 a0 L* p6 F( r4 r! ?& M) }//ip route-static 目标网段 子网掩码 出口端口IP地址
//出口端口IP地址是指当前网段进入其它网段，经过的最后的端口IP地址
  @. C, c7 _6 b' d2 ^6 e) t[r1]ip route-static 100.6.3.0 255.255.255.0 100.6.2.2
[r1]ip route-static 100.6.4.0 255.255.255.0 100.6.2.2
) A+ h- e1 s9 r6 P$ E" q2 Z, [[r1]ip route-static 100.6.5.0 255.255.255.0 100.6.2.2

r2
<H3C>system-view
! ]4 e# _. e% L7 ^[H3C]interface GigabitEthernet 0/0
[H3C-GigabitEthernet0/0]ip address 100.6.2.2 24
[H3C-GigabitEthernet0/0]exit
[H3C]interface GigabitEthernet 0/1
[H3C-GigabitEthernet0/1]ip address 100.6.3.1 24
<H3C>system-view
9 v: N' r' R  E4 `[H3C]ip route-static 100.6.1.0 255.255.255.0 100.6.2.1
[H3C]ip route-static 100.6.4.0 255.255.255.0 100.6.3.2
[H3C]ip route-static 100.6.5.0 255.255.255.0 100.6.3.2

  Z: j& C+ M5 O/ N. K$ S* {r3
. P/ ^/ {1 v0 _. B( F<H3C>sys
/ Q" y/ y" M  i7 X: B8 C2 K  @[H3C]interface GigabitEthernet 0/0
[H3C-GigabitEthernet0/0]ip address 100.6.3.2 24
[H3C-GigabitEthernet0/0]exit
/ ~3 @- Y4 K" d: h8 y5 S; d[H3C]interface GigabitEthernet 0/1
" g5 G: d! ?6 n1 e" ][H3C-GigabitEthernet0/1]ip address 100.6.4.1 24
  j# N# f1 }! E0 ^<H3C>system-view
  {$ A) o% y( K[H3C]ip route-static 100.6.1.0 255.255.255.0 100.6.3.1
[H3C]ip route-static 100.6.2.0 255.255.255.0 100.6.3.1
7 J0 q# ^2 a3 X  G9 I+ j( A[H3C]ip route-static 100.6.5.0 255.255.255.0 100.6.4.2
: `3 z! A! Z& e$ v- ]
% w: M$ v4 [4 C* M2 Q( }! z) rr4
<H3C>sys
1 L# m4 [" p( u1 t7 n/ H[H3C]interface GigabitEthernet 0/0
[H3C-GigabitEthernet0/0]ip address 100.6.5.1 24
( v2 a1 l. Z: S9 ~0 ~3 Y[H3C-GigabitEthernet0/0]exit
9 W1 Z! t* R+ Y- l- m+ b: S[H3C]interface GigabitEthernet 0/1
: P) z! |8 r# `4 _[H3C-GigabitEthernet0/1]ip address 100.6.4.2 24
[H3C-GigabitEthernet0/1]quit
[H3C]ip route-static 100.6.1.0 255.255.255.0 100.6.4.1
[H3C]ip route-static 100.6.2.0 255.255.255.0 100.6.4.1
  @- ^! B$ y- V. Q* a[H3C]ip route-static 100.6.3.0 255.255.255.0 100.6.4.1

7 K# d4 y2 ~  S9 t0 |实验结果
PC5ping通PC6
- ?5 l9 p/ C) M4 A8 x8 ^" KPC6ping通PC5
